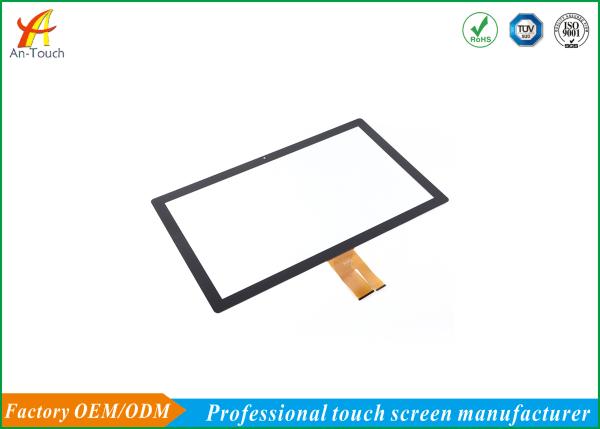

Transparent Flexible Capacitive Touch Screen / OEM 27 Touch Screen
Display
Flexible Capacitive Touch Screen Features:
1. Completely dead 10-point touch really, any point can withstand
more than 50 million times touch.
Explosion-proof and durable, complete physical steel
explosion-proof glass, scratch-resistant,
anti-collision,anti-radiation within the core capacitive touch
ensure stable, durable.
2. Strong compatibility, support WindowsXP / 7/8 / 8.1 / 10 / CE,
Mac, Android / Linux and other operating systems.
3. Anti-interference ability, without the interference of light and
radiation, surface water / oil / dust can touch any place accurate
and correct.
4. Free drive, plug and play.
5. Intelligent automatic calibration, simple and easy to adapt to
internal / external use a variety of environments.
Flexible Capacitive Touch Screen details
| Item | Specification |
| Part Number | AC-C1075-27.0 Flexible Capacitive Touch Screen |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 656.02*394.02mm |
| View Area | 598.6*337.14mm |
| IC Controller | ILITEK 2312 |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 3.1±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
Flexible Capacitive Touch Screen Features
1, Can support real 10 points touch, Compatible with multiple
system
2, High accuracy, good sensitivity, strong anti interference
ability.
Flexible Capacitive Touch Screen
Capacitive touch screen are built with two parallel layers of ITO
but, but unlike the old and cheap resistive touch panels, the ITO
layers in a projected capacitive touch panel are sealed between two
sheets of glass by an optically clear adhesive.
Flexible Capacitive Touch Screen
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Our service
1.We have the largest laminting mechine which can up to 65 inch.
2.In stock for fast delivery provide the best after-sales service.
3.We can provide the best design solutions according customer
requirements.
4.All of our products have been inspected strictly before delivery.
5.You can send the drawing to us directly,including the dimension
of cover glass and sensor,if you want your own logo on it,just send
us the design.
