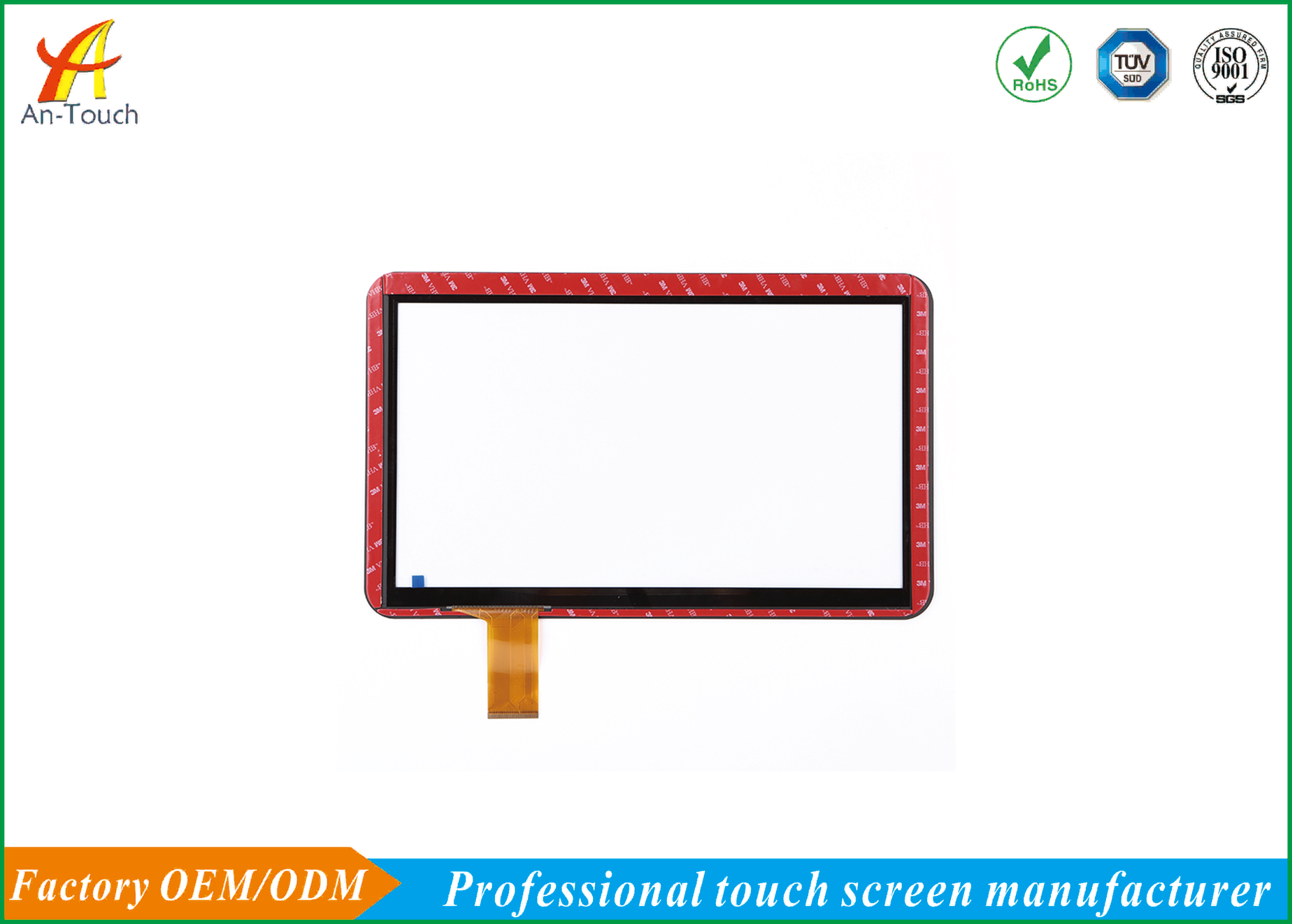

Frameless USB Capacitive Touch Screen , Multi Point Large Touch
Screen Panel
USB Capacitive Touch Screen Introduction :
·Narrow bezel,ultra-thin design
·Low power consumption
·Using four points for accurate positioning
·Used in longitudinal and transverse screen installation
USB Capacitive Touch Screen Features:
1.Completely dead 10-point touch really, any point can withstand
more than 50 million times touch.
Explosion-proof and durable, complete physical steel
explosion-proof glass, scratch-resistant, anti-collision,
anti-radiation within the core capacitive touch ensure stable,
durable.
2.Intelligent automatic calibration, simple and easy to adapt to
internal / external use a variety of environments.
3.Wear resistance, long life, low maintenance costs.
USB Capacitive Touch Screen Details
| Name | Frameless USB Capacitive Touch Screen , Multi Point Large Touch
Screen Panel |
| Part Number | AC-C156051 |
| Structures | Cover Glass+ITO Glass |
| Surface Hardness | >6H |
| Outline size | 386.8*236.07mm |
| View Area | 344.23*193.54mm |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30℃~80℃ |
| Total Thickness | 1.85±0.15mm |
| Transmittance | 86% Min |
| Interface Mode | USB/IIC/RS232 |
| Operating System | XP win7,8 Android Linux |
| Touch Points | 1-10 |
USB Capacitive Touch Screen Details
FAQ
1. How about Sample lead time ?
-------Custom samples 12-18work-days,standard samples
5~10work-days.
2. How about mass production lead time ?
------ 15 days after sample confirmed.
3.Shipping?
------Usually we deliver our goods by DHL,UPS, FedEx etc.
4. Payment term?
------ T/T or Western Union 30% deposit, 70% balance should be paid
before shipment.
5. How about the warranty?
------ Warranty 1year.
